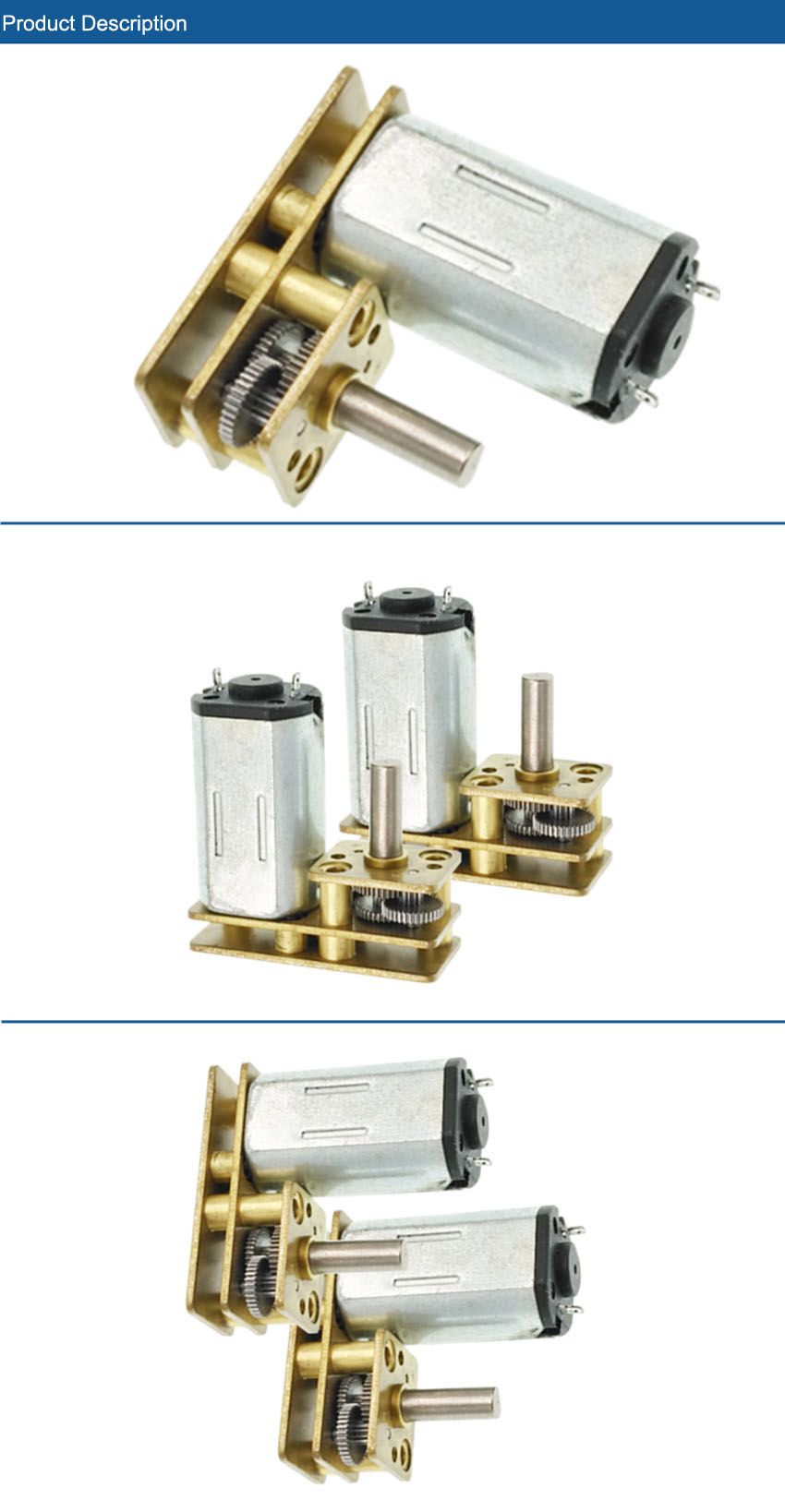

Hofon Motor GM1024-N30VA 3V 5V 6V 12V DC reduction Metal Gear Motor For Smart Lock

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine

Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.

Representative Performance:

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
				r/min	A	r/min	A	mN.m	g.cm	w	mN.m	g.cm	A
1# GM12F-N30VA-09210-30+EN		1.5-5.0	3.0V	206	0.020	160	0.070	6	60	0.210	26.0	260	0.28
2# GM12F-N30VA-09210-50+EN		1.5-5.0	3.0V	124	0.020	96	0.070	10	100	0.210	44.0	440	0.28
3# GM12F-N30VA-09210-100+EN		1.5-5.0	3.0V	62	0.020	48	0.070	20	200	0.210	85.0	850	0.28
4# GM12F-N30VA-09210-150+EN		1.5-5.0	3.0V	41	0.020	32	0.070	30	300	0.210	130.0	1300	0.28
5# GM12F-N30VA-09210-210+EN		1.5-5.0	3.0V	29	0.020	22	0.070	42	420	0.210	≥150	≥1500	0.28
6# GM12F-N30VA-09210-250+EN		1.5-5.0	3.0V	24	0.020	19	0.070	50	500	0.210	≥150	≥1500	0.28
7# GM12F-N30VA-09210-298+EN		1.5-5.0	3.0V	20	0.020	16	0.070	59.6	596	0.210	≥150	≥1500	0.28
8# GM12F-N30VA-09210-30+EN		3.0-8.0	6.0V	412	0.350	320	0.090	12	120	0.540	52.0	520	0.56
9# GM12F-N30VA-09210-50+EN		3.0-8.0	6.0V	248	0.350	192	0.090	20	200	0.540	88.0	880	0.56
10# GM12F-N30VA-09210-100+EN		3.0-8.0	6.0V	124	0.350	96	0.090	40	400	0.540	≥150	≥1500	0.56
11# GM12F-N30VA-09210-150+EN		3.0-8.0	6.0V	82	0.350	64	0.090	60	600	0.540	≥150	≥1500	0.56
12# GM12F-N30VA-09210-210+EN		3.0-8.0	6.0V	58	0.350	44	0.090	84	840	0.540	≥150	≥1500	0.56
13# GM12F-N30VA-09210-250+EN		3.0-8.0	6.0V	48	0.350	38	0.090	100	1000	0.540	≥150	≥1500	0.56
14# GM12F-N30VA-09210-298+EN		3.0-8.0	6.0V	40	0.350	32	0.090	119.2	1192	0.540	≥150	≥1500	0.56
15# GM12F-N30VA-12120-30+EN		1.5-5.0	3.0V	300	0.060	237	0.280	11.7	117	0.840	24.0	240	0.70
16# GM12F-N30VA-12120-50+EN		1.5-5.0	3.0V	180	0.060	142	0.280	19.5	195	0.840	40.0	400	0.70
17# GM12F-N30VA-12120-100+EN		1.5-5.0	3.0V	90	0.060	71	0.280	39	390	0.840	72.0	720	0.70
18# GM12F-N30VA-12120-150+EN		1.5-5.0	3.0V	60	0.060	47	0.280	58.5	585	0.840	108.0	1080	0.70
19# GM12F-N30VA-12120-210+EN		1.5-5.0	3.0V	42	0.060	33	0.280	81.9	819	0.840	≥150	≥1500	0.70
20# GM12F-N30VA-12120-250+EN		1.5-5.0	3.0V	36	0.060	28	0.280	97.5	975	0.840	≥150	≥1500	0.70
21# GM12F-N30VA-12120-298+EN		1.5-5.0	3.0V	30	0.060	23	0.280	116.2	1162	0.840	≥150	≥1500	0.70
22# GM12F-N30VA-12120-30+EN		3.0-7.0	5.0V	500	0.080	396	0.303	19.5	195	1.500	83.0	830	1.14
23# GM12F-N30VA-12120-50+EN		3.0-7.0	5.0V	300	0.080	238	0.303	32.5	325	1.500	130.0	1300	1.14
24# GM12F-N30VA-12120-100+EN		3.0-7.0	5.0V	150	0.080	119	0.303	65	650	1.500	≥150	≥1500	1.14
25# GM12F-N30VA-12120-150+EN		3.0-7.0	5.0V	100	0.080	79	0.303	97.5	975	1.500	≥150	≥1500	1.14
26# GM12F-N30VA-12120-210+EN		3.0-7.0	5.0V	71	0.080	56	0.303	136.5	1365	1.500	≥150	≥1500	1.14
27# GM12F-N30VA-12120-250+EN		3.0-7.0	5.0V	60	0.080	47	0.303	162.5	1625	1.500	≥150	≥1500	1.14
28# GM12F-N30VA-12120-298+EN		3.0-7.0	5.0V	50	0.080	39	0.303	193.7	1937	1.500	≥150	≥1500	1.14
29# GM12F-N30VA-12120-1000+EN		3.0-7.0	5.0V	15	0.080	11.9	0.303	642.4	6552	1.500	≥150	≥1500	1.14

Reduction Ratio

1 : 3

1 : 5

1 : 10

1 : 30

1 : 50

1 : 63

1 : 100

1 : 150

1 : 210

1 : 250

1 : 298

1 : 1000

Company Profile

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Competitive Advantage

• 20 years experience in manufacturing motor and gearbox motor
• Experienced Staff: average 15 years experience in R&D , ODM & OEM
• International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
• Competitive Price
• High Product Performance: Low noise, High efficiency, Long lifespan
• Prompt Delivery: 20-25 working days after payment
• Quality Approvals
• Small Orders Accepted
• Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc

Quality Cotrol Test

• Reliability Test & Laboratory
• Noise Test
• Water-proof Test
• Life Test
• Impact Test
• Storage Test
• Salt Spray Test
• Environmental Related Substance

Certifications

Exhibition

Packaging & Shipping

Hofon Precise Motor Limited
